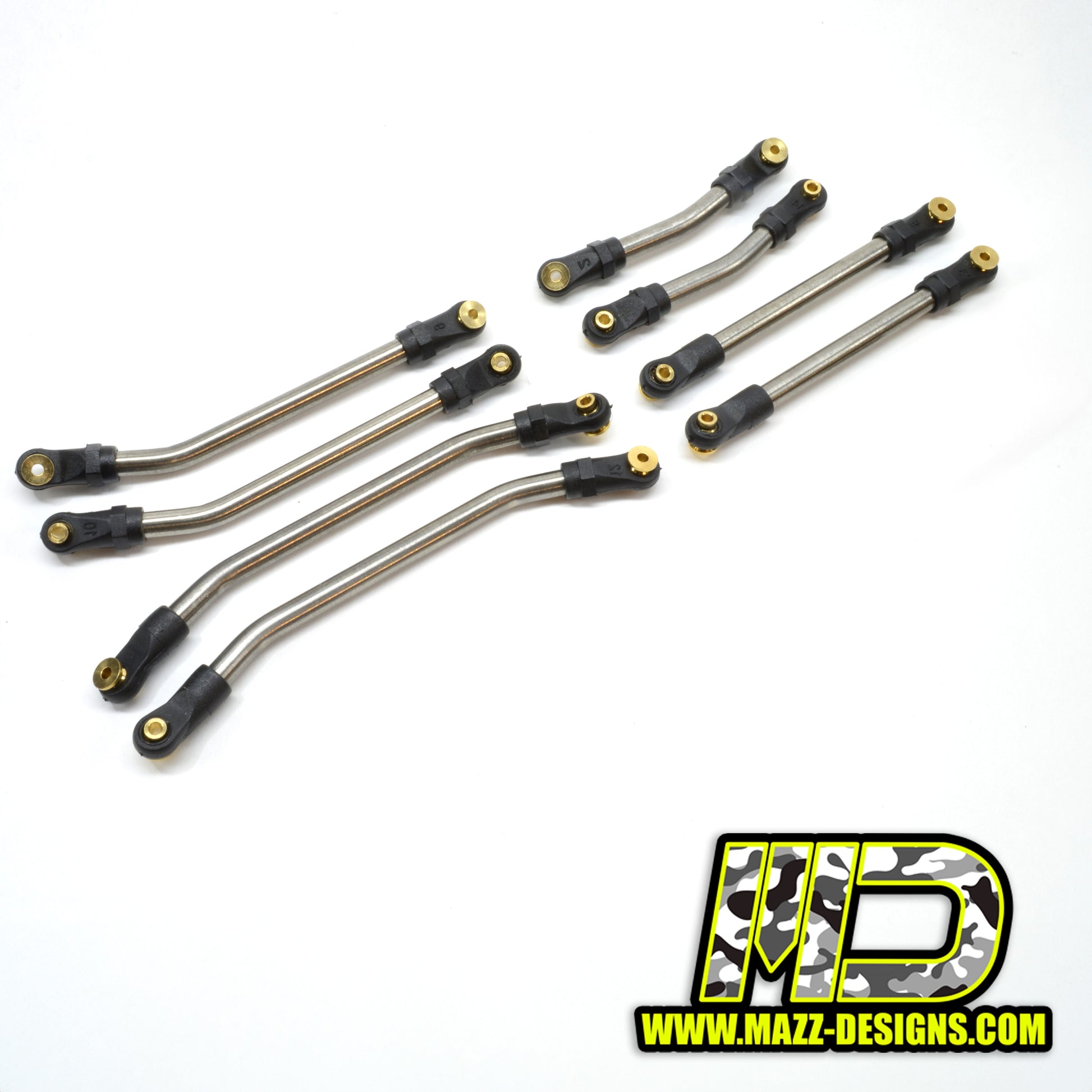

SS DOUBLE BEND SUSPENSION LINKS

• Mazz Designs original ground up design. We were the first and only company to bring a reasonably priced, high quality, and original designed set of double bend links.

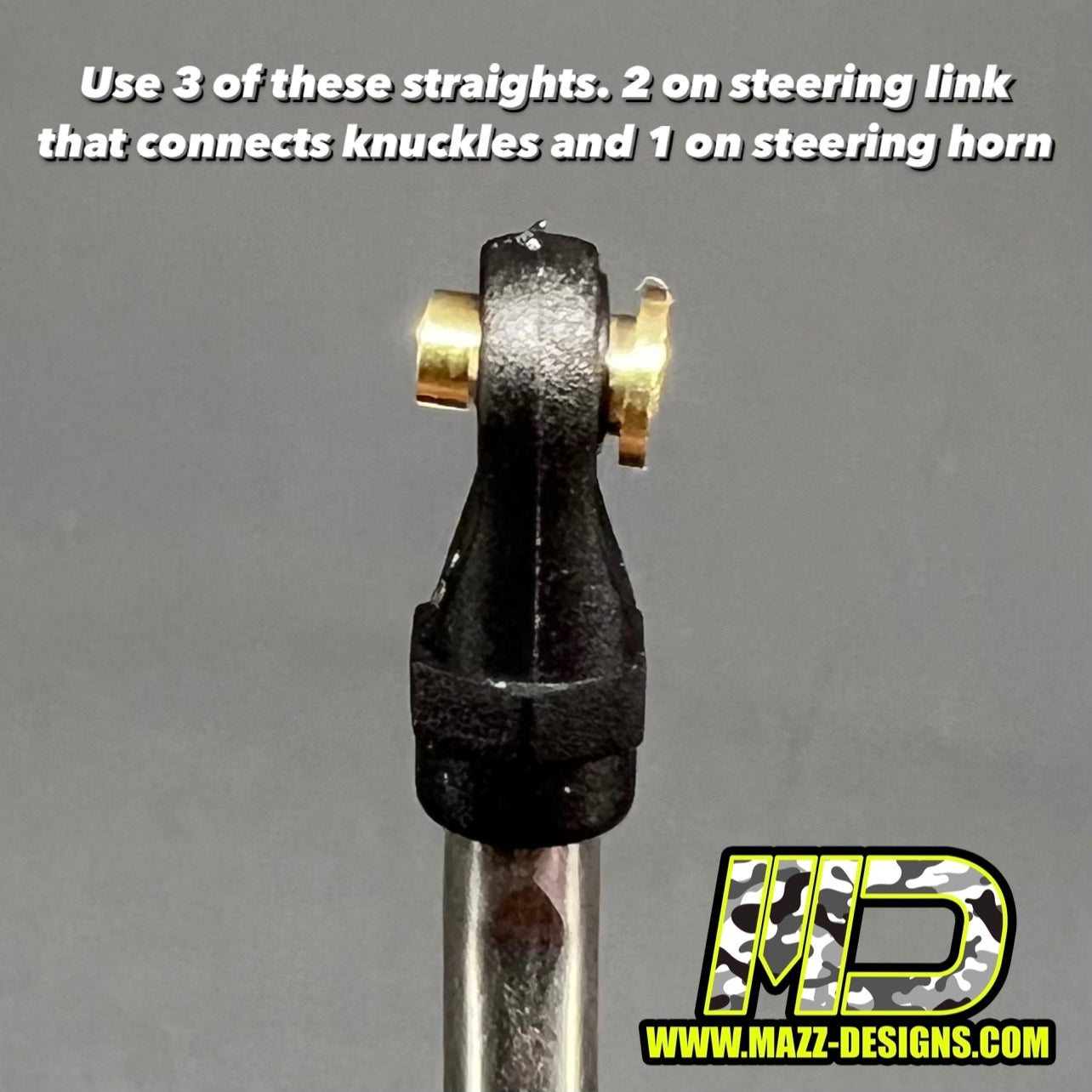

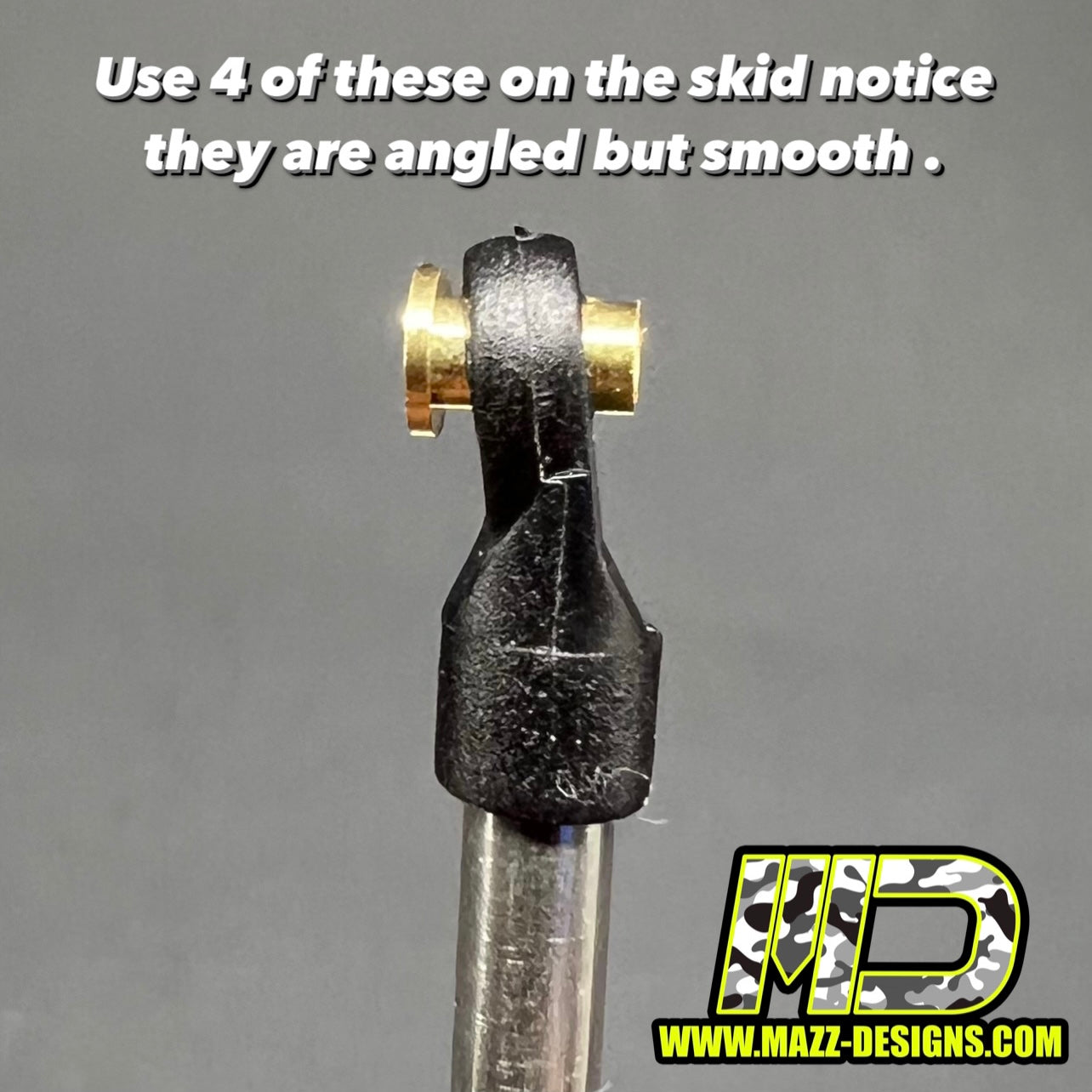

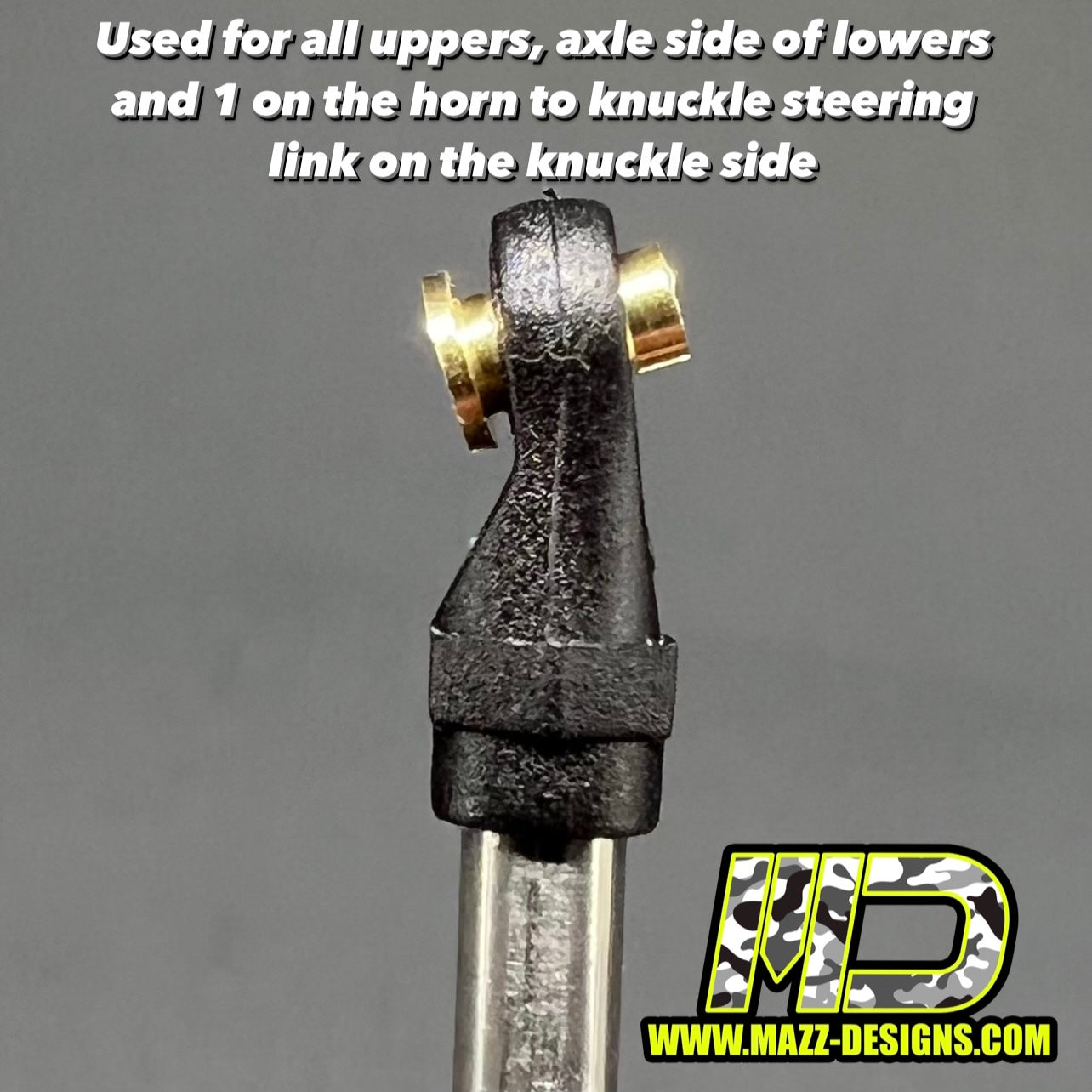

• Features misalignment rod ends in 3 varieties, angled with smooth ends for attaching to skid, angled with hex for attaching all others, and straight with hex just for those specific applications where you may need it.

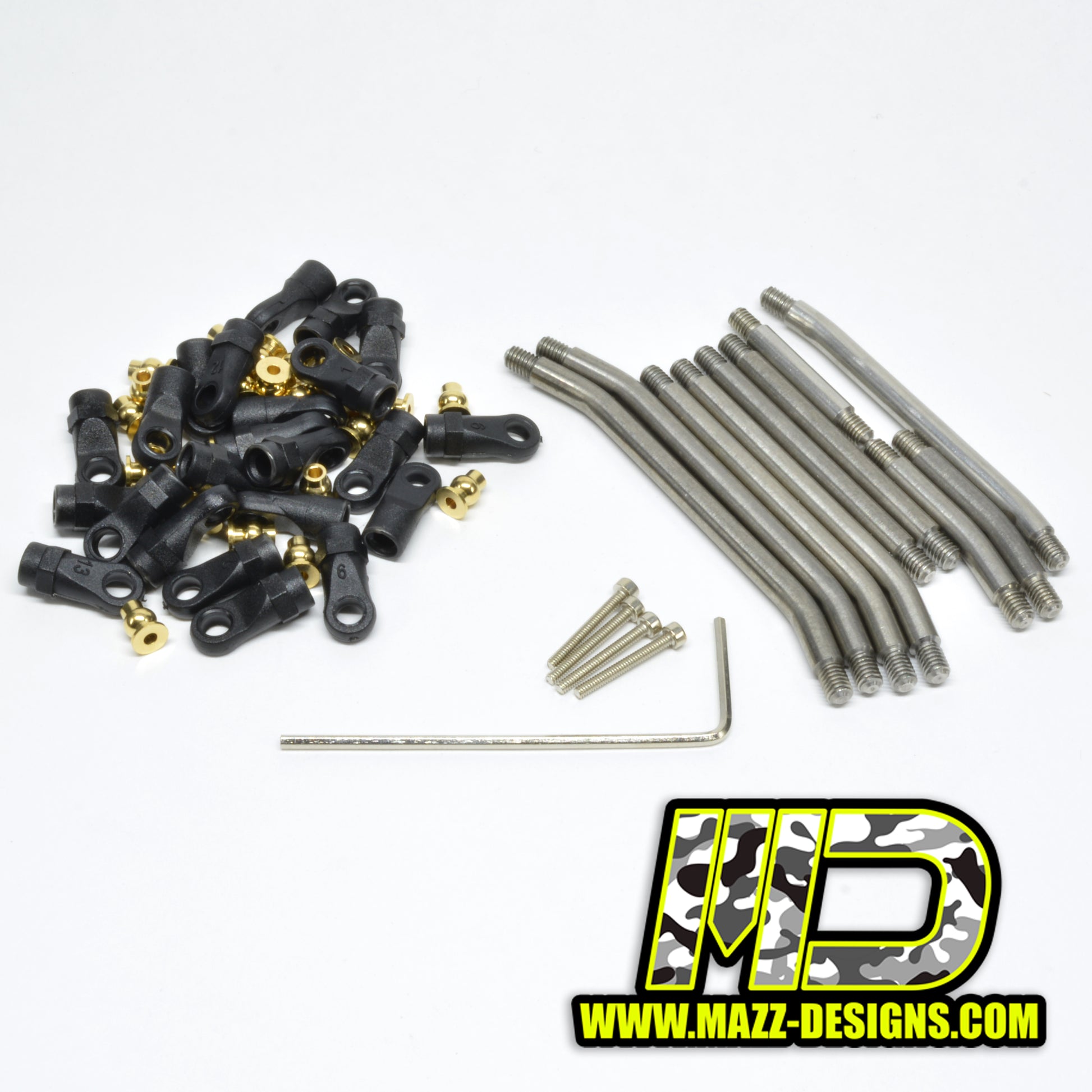

• Includes 8 rods, no steering links included as most all axles these days come with specific links for them.

• 12mm screws included for attaching links to the skid

These will fit SCX based rigs with upper link adjustments and if using a stock style skid the upper ears will need to be trimmed. these will NOT work with stock chassis rails or aftermarket chassis that rely on upper links attaching to stock style skid.

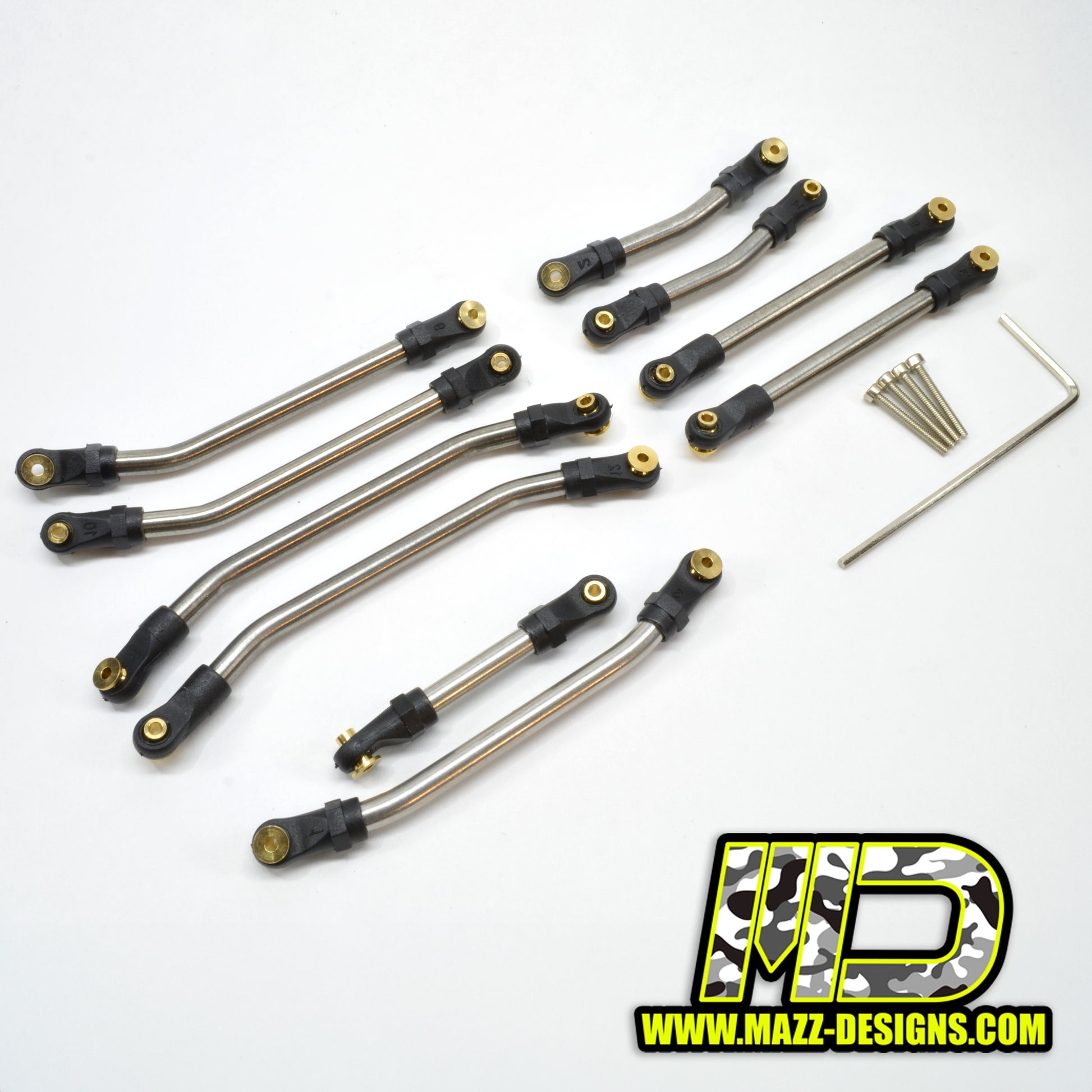

Photos of c-10 front variants are C-Bolt length for reference.

C10/JLU 134mm

C-Bolt 38 (c10 fronts/ deadbolt rears)  144mm

Gladiator 155mm

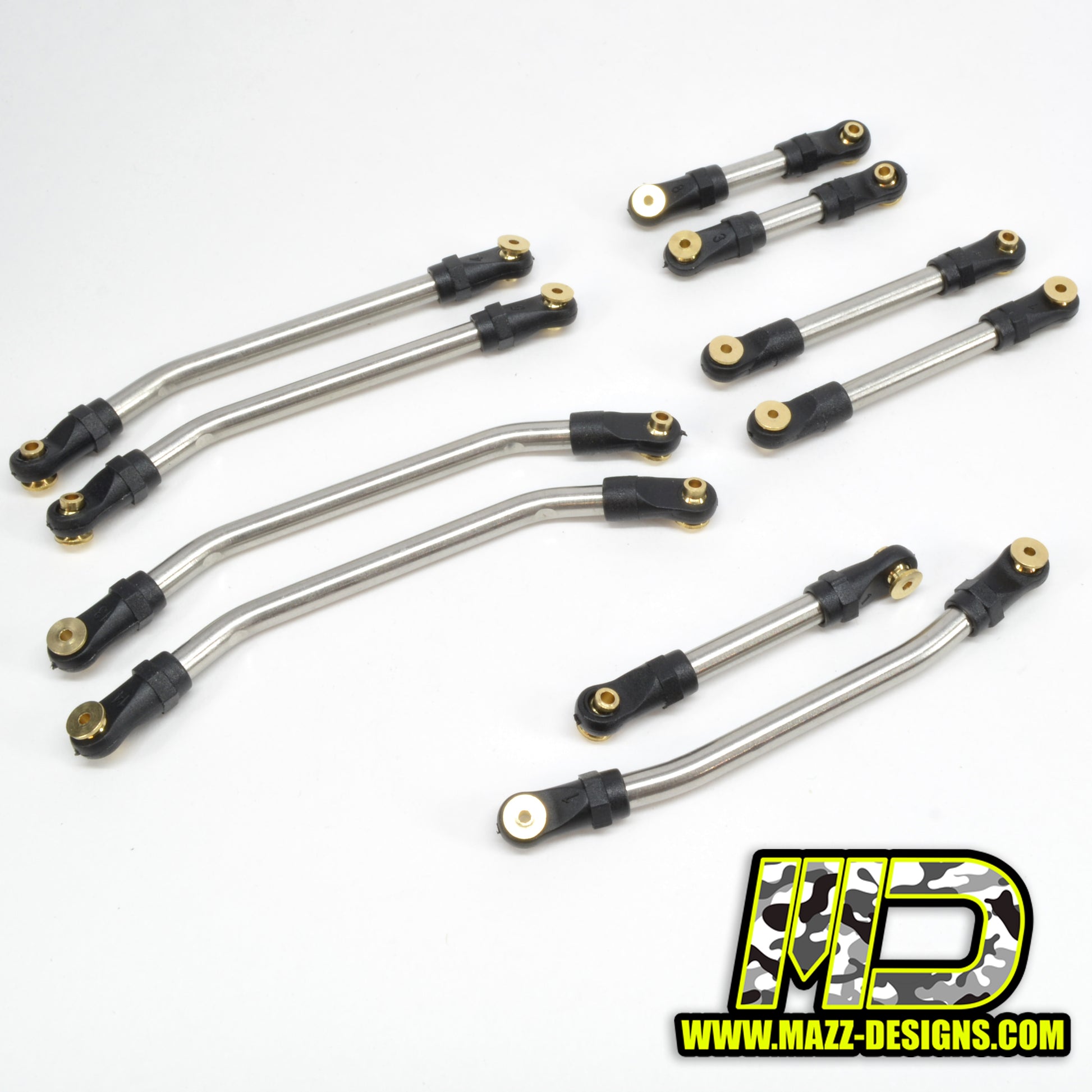

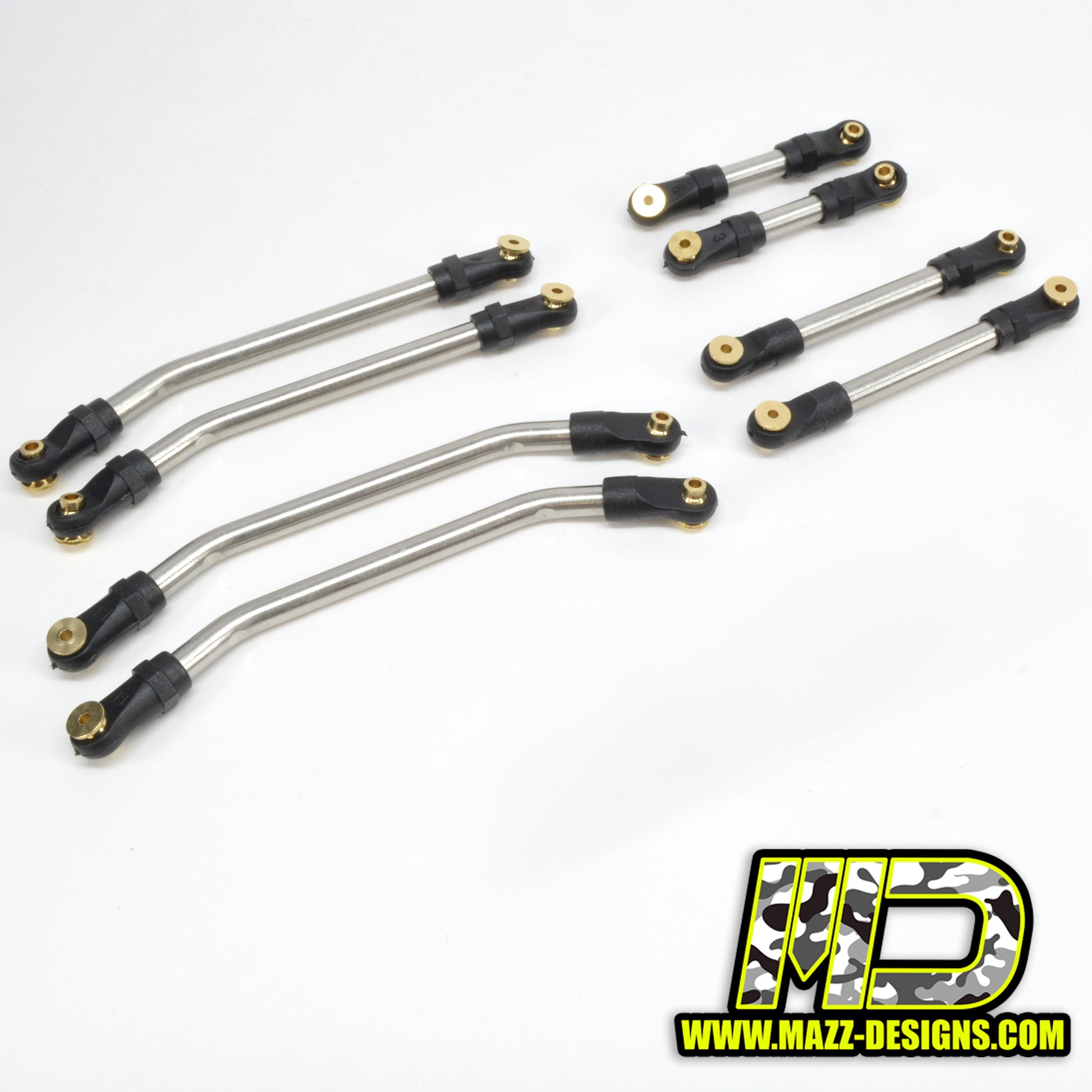

Photos of deadbolt front variants are deadbolt length for reference.

Dead10 (deadbolt front/c10 rears) 125mm SWB

Deadbolt 134mm

Deadiator (deadbolt front/ glady rears) 144mm

D90 (deadbolt front/ 90mm rears) 155mm

DEADBOLT SIZES WILL FIT ALL CHEAT CODE CHASSIS WITH TIRE SIZE OF 64MM OR SMALLER TIRES AND CARBON SLIDERS. STANDARD SLIDERS CAN BE TRIMMED AND USED AS WELL.
