The V3 Cheat Code Chassis builds on all our industry-first innovations—like adjustable upper links, reversible trans, and more from the V1/V2—now in a more refined, high-performance package. Competitors are left to chase and imitate our designs, materials, and quality.
Key Features:

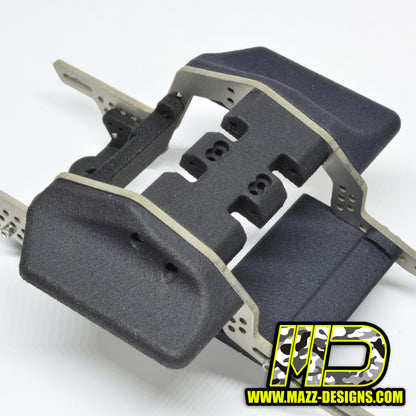

15° skid angle – Tucks motors deep into the chassis.
Reversible trans bolt pattern – Flip your motor/trans without removing the skid.
Ultra-Compact Belly Design – Superior breakover and reduced high-centering.
Advanced link geometry –
Optimized for double-bend rear links
2-way front & 5-way rear upper link adjustments
Adjustable anti-squat and anti-dive
Rear upper links can be run inboard or outboard
Refined sliders – Reduced footprint with knife-edged leading surfaces for improved obstacle clearance.
Expanded shock tuning –
15-hole front shock tower
21-hole rear shock tower
Included:
(2) Chassis rails
(7) Nylon MJF printed parts
15° skid
Front battery tray
Rear electronics trays
Sliders
Magnetic body mounts
Raised front double mag mount
Single mag rear mount
(6) magnets
M1.4 nuts for attaching upper links to chassis
Construction:
USA laser cut Titanium rails
USA professionally printed Nylon MJF parts
Assembly Notes:
Use blue thread locker on all M1.4 nuts
Use E6000 or Shoe Goo to secure magnets
12mm screws required for lower links
Optional: Use a pin vise with 1mm drill bit to clear any residual print debris (rare)
We recommend using the following suspension links for the CCv3
