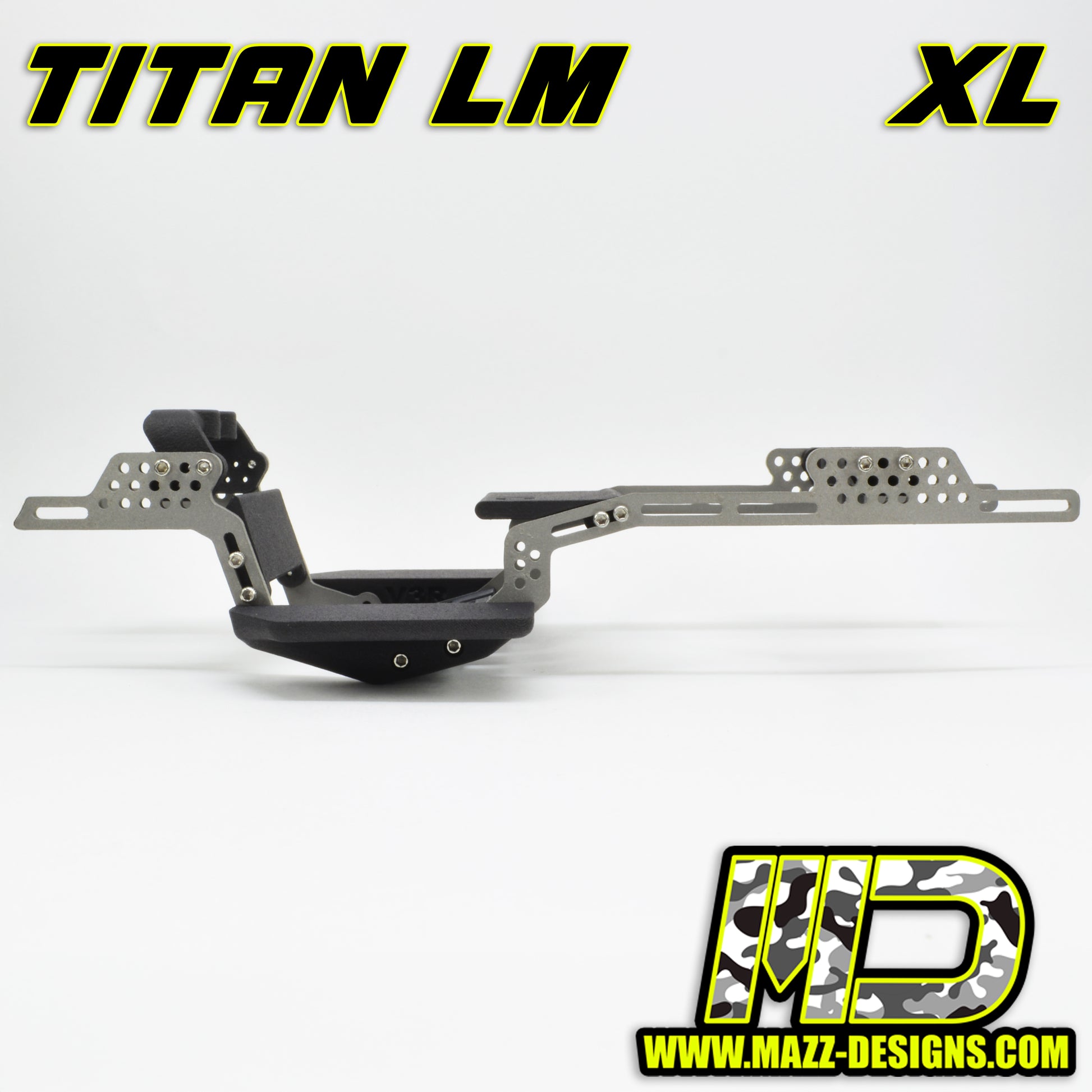

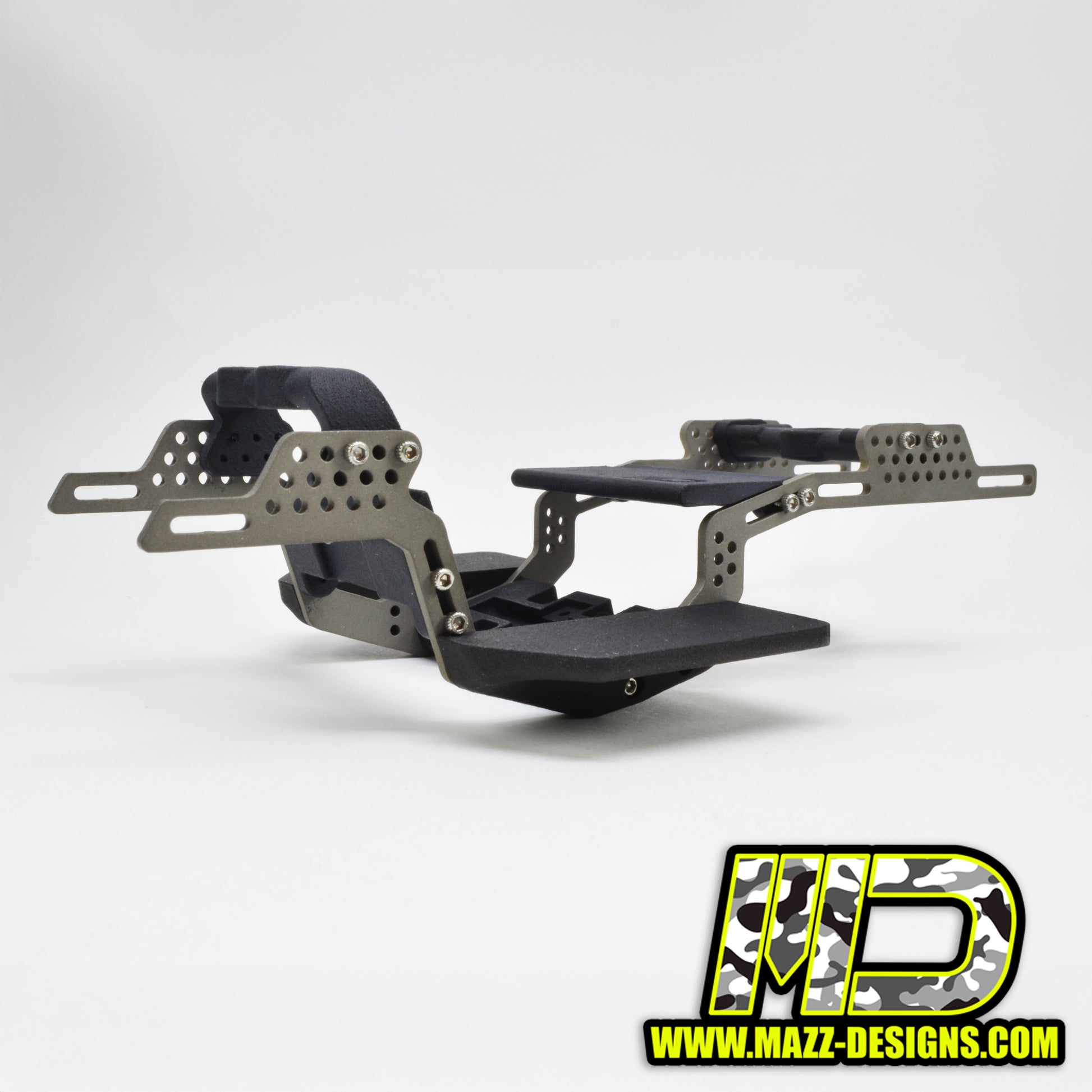

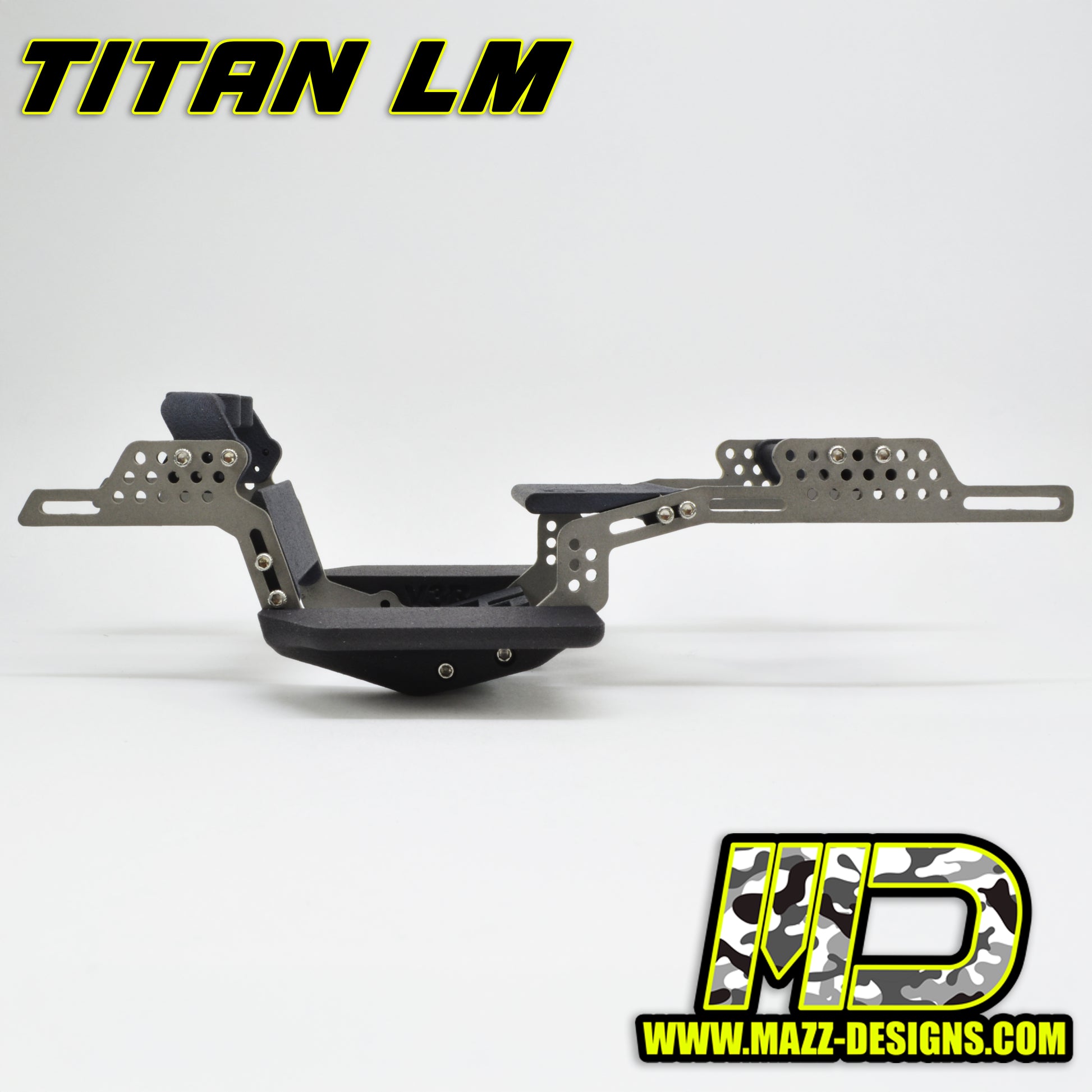

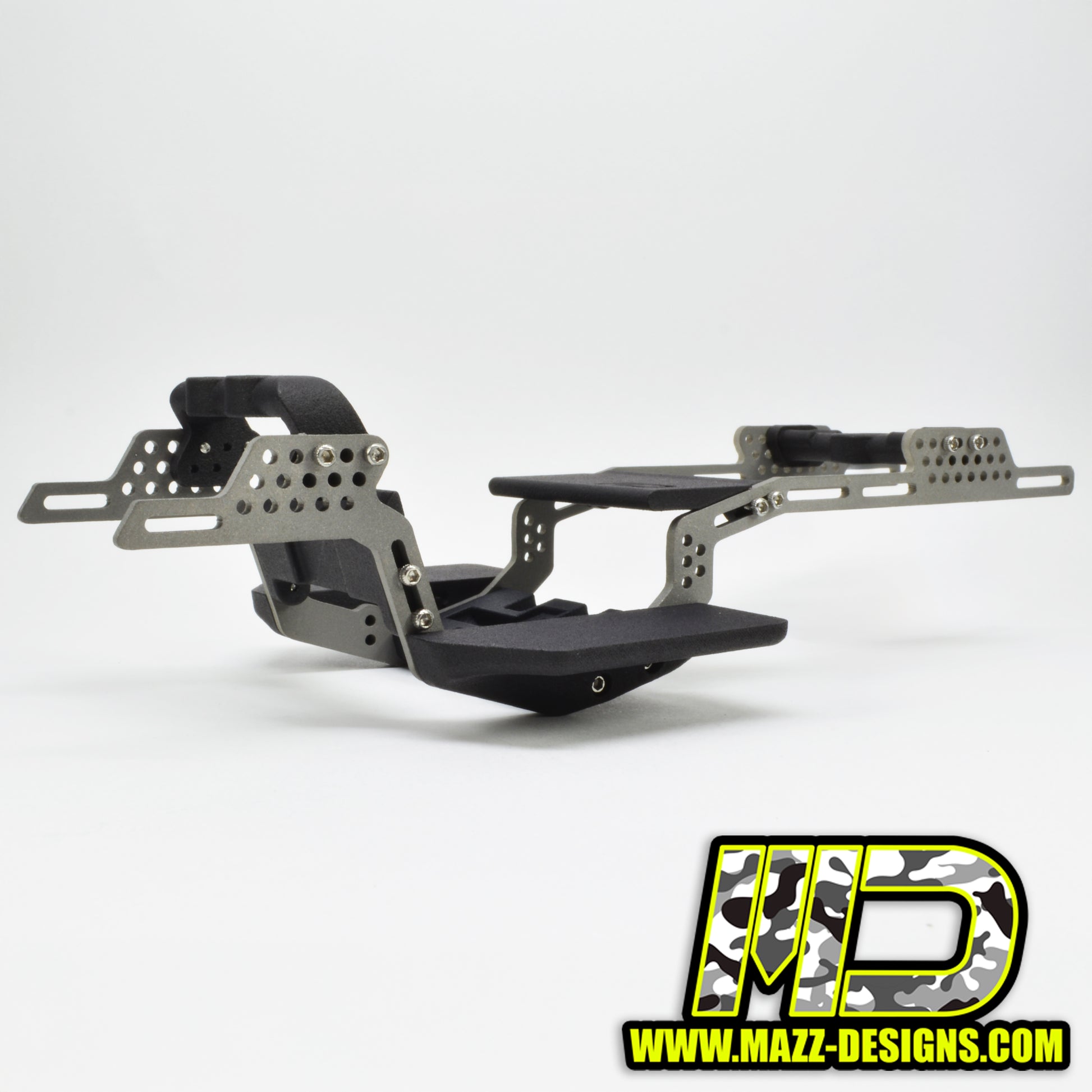

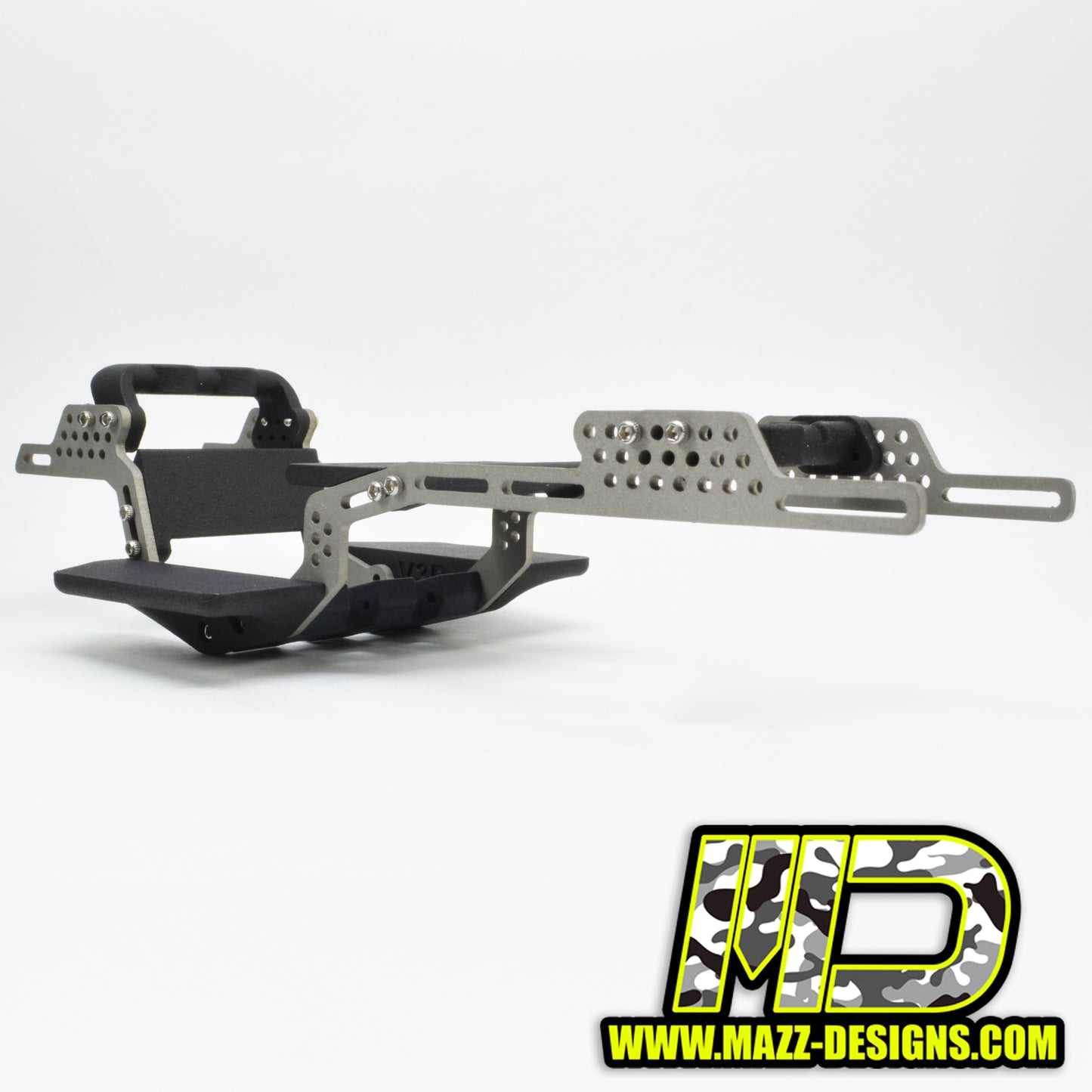

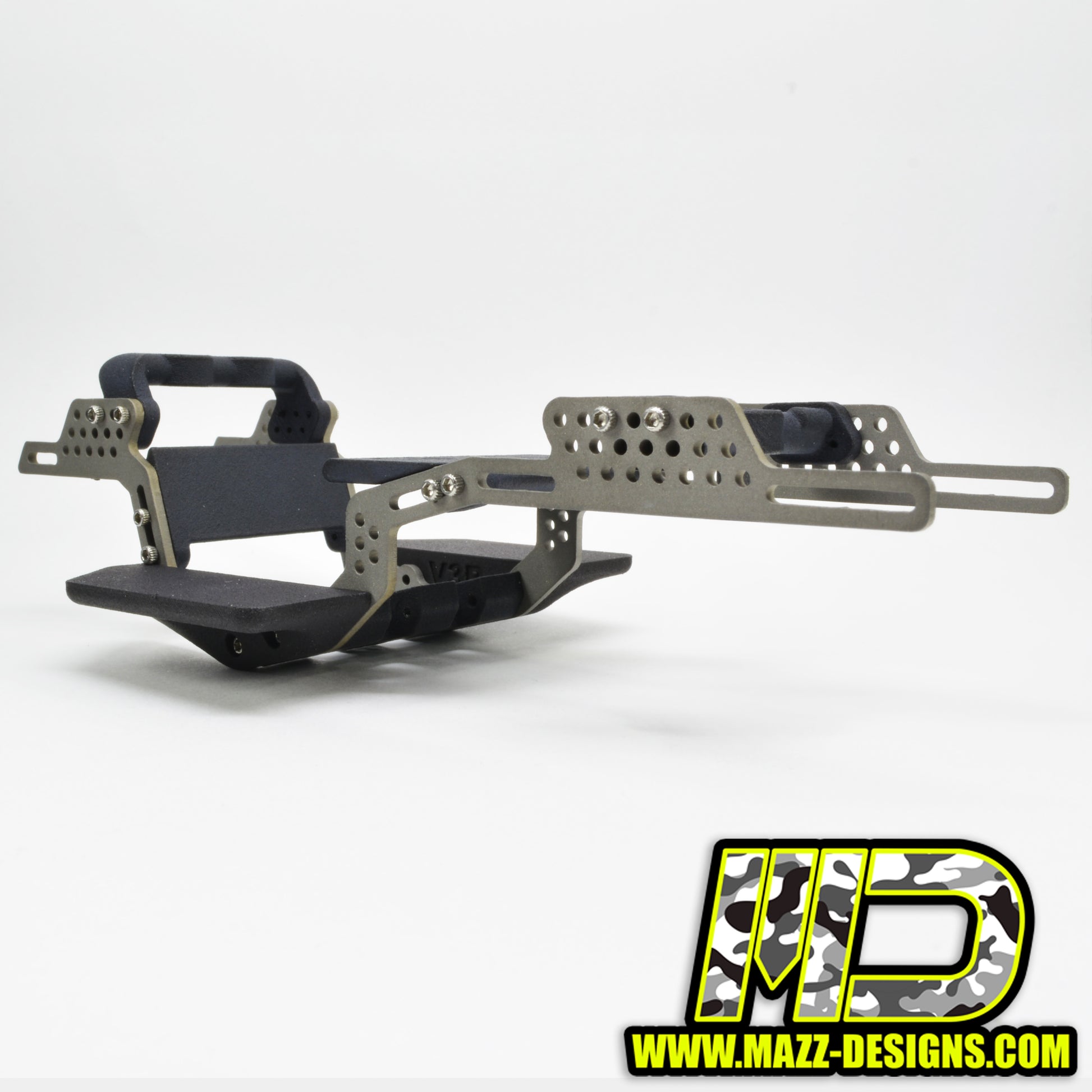

CCv3 TITAN LM CHASSIS

The Titan LM chassis is a Limited run of Cheat Code v3 Chassis that features the industry's first Matte Titanium Finish.

Key Features:

• 15° skid angle – Tucks motors deep into the chassis.
• Reversible trans bolt pattern – Flip your motor/trans without removing the skid.
• Ultra-Compact Belly Design – Superior breakover and reduced high-centering.
• Advanced link geometry –
  • Optimized for double-bend rear links
  • 2-way front & 5-way rear upper link adjustments
  • Adjustable anti-squat and anti-dive
  • Rear upper links can be run inboard or outboard

• Refined sliders – Reduced footprint with knife-edged leading surfaces for improved obstacle clearance.
• Expanded shock tuning –
  • 15-hole front shock tower
  • 21-hole rear shock tower

Included:

• (2) Chassis rails
• (7) Nylon MJF printed parts
  • 15° skid
  • Front battery tray
  • Rear electronics trays
  • Sliders
  • Magnetic body mounts
    • Raised front double mag mount
    • Single mag rear mount
• (6) magnets

• M1.4 nuts for attaching upper links to chassis

Construction:

• USA laser cut Titanium rails
• USA professionally printed Nylon MJF parts


Assembly Notes:

• Use blue thread locker on all M1.4 nuts
• Use E6000 or Shoe Goo to secure magnets
• 12mm screws required for lower links
• Optional: Use a pin vise with 1mm drill bit to clear any residual print debris (rare)
• Recommended suspension links for standard CCv3

  • Dead10 SWB
  • C-10
  • C-Bolt
  • Deadbolt
• Recommended suspension links for XL CCv3
  • Gladiator
  • Deadiator
  • D90

Recommended Add-Ons

• 👉 Hardware Kit
• 👉 Double Bend Suspension Links
• 👉 CF Angled Sliders

• 👉 Optional 10° Skid

Don’t just beat the competition — make them feel cheated.
