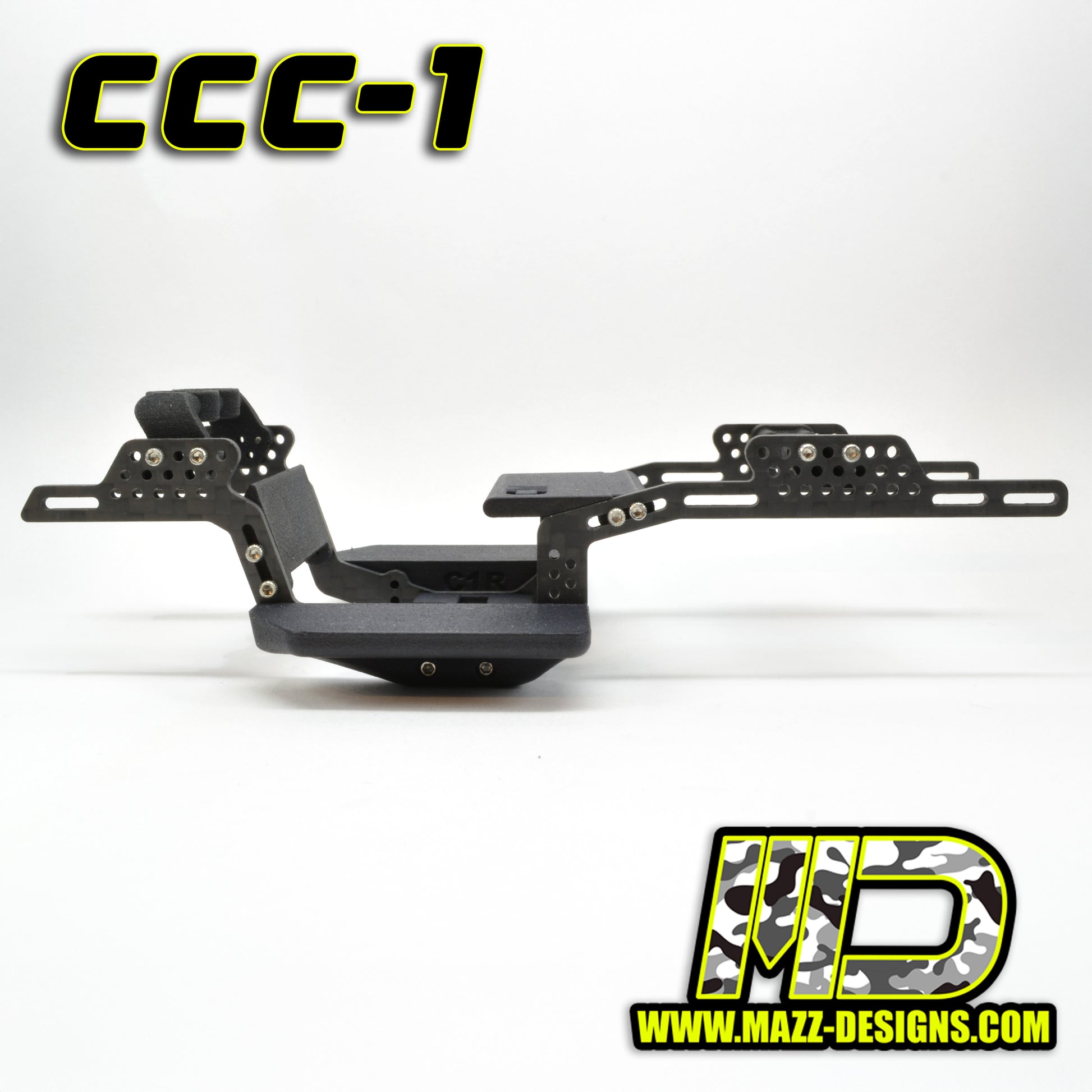

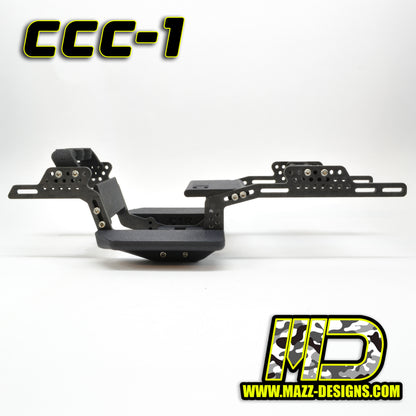

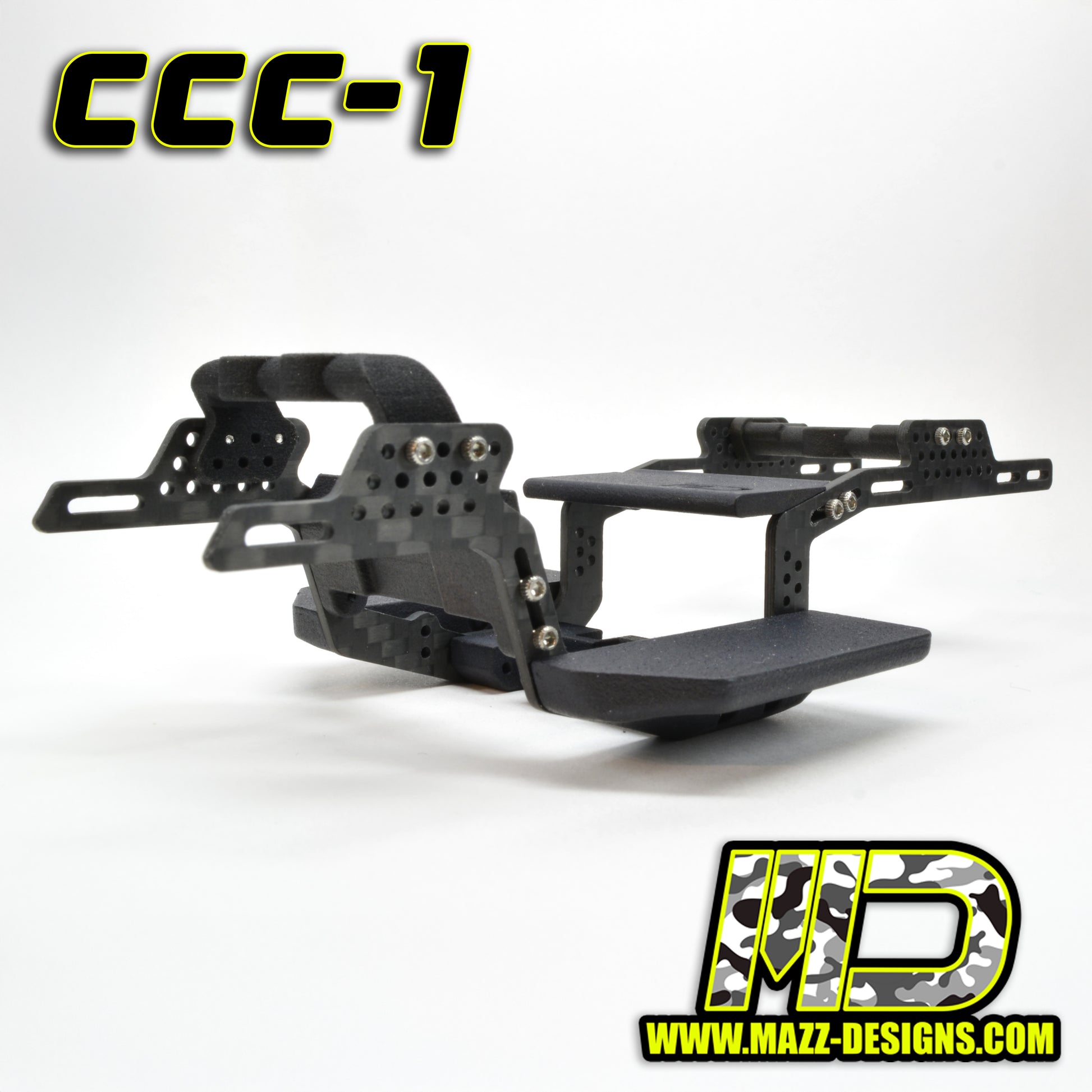

CCC-1 CARBON CHASSIS

The all-new Carbon Fiber Cheat Code Class 1 chassis takes the DNA of our CCV3 and refines it into the most advanced C1 chassis on the market. It is the first Class 1 chassis specifically designed around Double bend suspension links. Built for competition-ready performance and ultimate adjustability, it pushes C1 crawling to the next level. Competitors are left chasing innovations we pioneered.

Key Features:

• 0° class 1 legal chassis – Fully compliant and competition-ready
• Advanced link geometry –
  • Optimized for double-bend rear links
  • Upper links adjustable inboard or outboard

• Shock tuning –
  • 15-hole front shock tower
  • 21-hole rear shock tower

• Built around Deadbolt rear links; rails can be extended with some simple solutions for longer setups while staying legal

Included:

• (2) Chassis rails
• (7) Nylon MJF printed parts
  • Skid
  • Front battery tray
  • Rear electronics trays
  • Sliders
  • Magnetic body mounts
    • Raised front double mag mount
    • Single mag rear mount
• (6) magnets

• M1.4 nuts for attaching upper links to chassis


Construction:

• CNC-cut carbon fiber rails
• Professionally printed Nylon MJF parts with fully threaded holes for easy, solid assembly

Assembly Notes:

• Use blue thread locker on all M1.4 nuts
• Magnets can be secured with E6000 or Shoe Goo
• Rear rails can be extended to cover midpoint of axle tube if using longer links
• 10° optional skid can be utilized to lower forward-facing pancake motors
• We recommend using the following suspension links for the C1 Chassis

  • C-10
  • C-Bolt
  • Deadbolt
  • Gladiator (rear rail extension needed)
  • Deadiator (rear rail extension needed)

Recommended Add-Ons

• 👉 Hardware Kit
• 👉 Double Bend Suspension Links

• 👉 Optional 10° Skid
